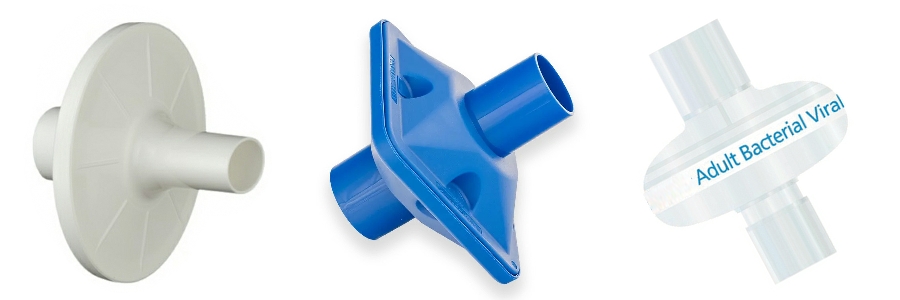

Bacterial Viral Filters (BVFs)

What They Are

BVFs are high-efficiency filters used in respiratory circuits, placed between the patient and the respiratory device (e.g., spirometer, ventilator, CPAP). They are designed to trap bacteria and viruses, preventing them from entering the equipment or being passed to other patients.


Key Features


• Filters out >99.99% of airborne bacteria and viruses
• Usually single-use (disposable)
• Designed for both inspiratory and expiratory protection

When to Use


• During pulmonary function testing (PFT)
• With mechanical ventilation or CPAP/BiPAP machines
• In clinical settings where infection control is critical
• For multi-patient use devices, where device protection is important

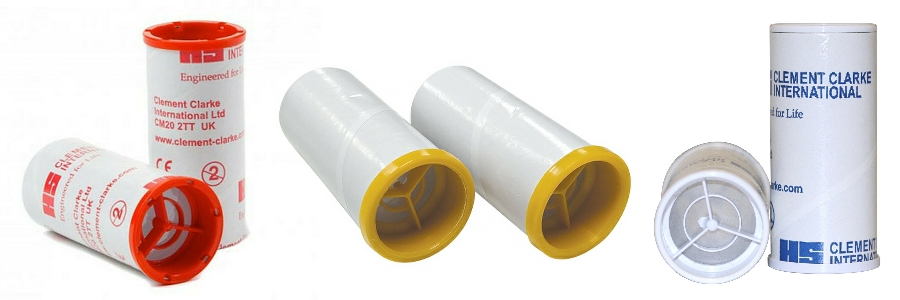

One-Way Valved Mouthpieces

What They Are

One-way valved mouthpieces are designed to allow airflow in only one direction—either during inhalation or exhalation, depending on the configuration. They contain an internal valve that opens for airflow in the desired direction and blocks flow in the opposite direction.


Key Features


• Available in expiratory-only or inspiratory-only designs
• Prevents contaminated exhaled air from reaching equipment or the environment
• Useful for reducing cross-contamination risk, though not a substitute for filtration

When to Use


• For controlled respiratory testing or training with devices such as peak flow meters or the in-check dial
• In situations where only unidirectional flow is needed to protect equipment or patients
• As a supplement to bacterial/viral filters, or when filters are not required
• >For research and clinical testing where direction-specific airflow is important

Note: One-way valved mouthpieces do not filter pathogens, so they should not be relied on alone for infection prevention in high-risk settings.

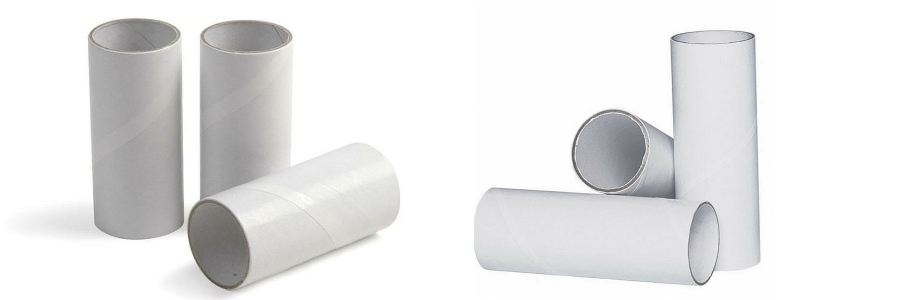

Disposable Mouthpieces

What They Are

These are simple, single-use plastic or cardboard mouthpieces used for patient hygiene and convenience. They do not include any filtration or valves.


Key Features


• Extremely low cost
• No internal components (no valve or filter)
• Basic hygiene only

When to Use


• For low-risk patients in non-clinical or home environments
• One-time testing situations where sterility is less critical, personal use devices
• When using devices with internal filters already installed

Caution: These offer no microbial protection; devices need to be sterilised before use with other patients




Summary:


When to Use Which

• Use BVFs when infection control is the highest priority—especially in hospitals, pulmonary labs, and when reusing equipment between patients.

• Use One-Way Valved Mouthpieces when you need unidirectional airflow for specific testing purposes—such as allowing only inspiratory or expiratory flow. They are useful for protecting equipment or test accuracy but should be combined with BVFs if infection control is also a concern.

• Use Disposable Mouthpieces in low-risk or single-use scenarios, such as home testing, school screenings, or research with minimal infection risk. They are cost-effective but provide no filtration or directional control.
