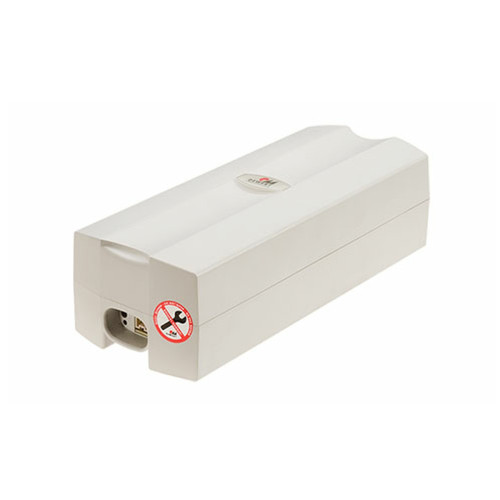

To remove / install the battery

To remove the battery, squeeze the lever under the end of the battery to release the lock and then pull away from the control box interface connection, allowing the battery to continue resting on its slide support. CAREFULLY LIFT THE BATTERY OUT.

To install the battery, lift the battery into position and rest on its slide support. Push the battery firmly into the control box interface until you hear the lock click.

Battery life

The number of operations per charge will vary according to the frequency of use and stretcher loads.

Do not continually run the battery to low charge as this will gradually reduce the battery life.

Regular charging of the battery is recommended.

On hearing an audible low battery warning tone from the unit during use, remove the battery for charging immediately.

To charge the battery

When the stretcher main power cable is connected to a standard 240V outlet the battery is automatically charging.

Alternatively if there is a separate charging unit (option), it can be wall mounted and must be connected to a standard 240V power point.

Action of removal and replacement of the battery on both the charger and the stretcher is similar, except that the wall charger may be mounted vertically.

Charging time may take up to 6 hours and the battery may be left on charger permanently.

FAILURE TO COMPLY WITH THESE INSTRUCTIONS WILL RESULT IN SHORTENING THE BATTERY LIFE
